Kenwood

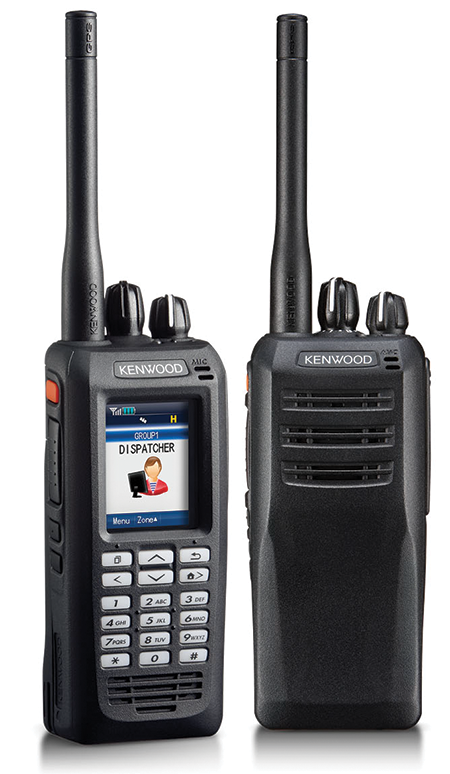

KENWOOD TK-D DMR SERIES
Kenwood TK-D200 / D300 DMR Digital / Analogue Portable family
The TK-D200 (VHF) and TK-D300 (UHF) radios are the first models in Kenwood’s new digital radio range to comply with the ETSI DMR air interface protocol specification in Tier 2.
Designed to meet requirements of users who operate small-scale communication systems and / or who require ETSIcompliant product.
A sunlight readable display with 18 hour battery life (withKNB-57 battery) complement the advanced features offered by the new TK-D200 / D300 series radios.
Features
- TDMA – 2 slot for 1 carrier in 12.5 KHz
- Dual Modes Operation – Analogue FM + Digital
- Easy visible 2 inch colour TFT QVGA Transflective LCD Display
- Mixed Mode – Permits RX / TX in both FM and Digital
- Built-in GPS – Improves efficiency and safety
- Integrated Voice and Text Messages
- Rugged and Durable – Compliant to MIL-STD-810 and IP54 / IP55
- TDMA 2-Slot DMR Digital Air Interface
- Complies with ETSI DMR Standard
- TS 102 361-1, -2 and -3
- 2-slot/1-carrier 12.5 kHz Channels (Digital)
- 2” Colour TFT QVGA LCD Display (E-models)
- Built-in GPS unit (G-models)
- Extra Large 512 Channel Capacity
- (E2-models 64 chs)
- AMBE+2™ VOCODER
- Analogue FM and DMR Digital Dual-mode
- ‘Man Down’ function built-in
- Emergency Call/Lone Worker Features
- Voice Guide function
- 5-Tone Encode / Decode
- Voice + Text Messaging
- Contacts List Mode
- Rugged Construction
- (MIL-STD 810 C/D/E/F/G and IP54/55)
Downloads
The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather conditions, electromagnetic interference, and obstructions.
Battery life is based on typical use, for example 5:5:90 (transmit:receive:idle). This is an example only and may vary from product to product.

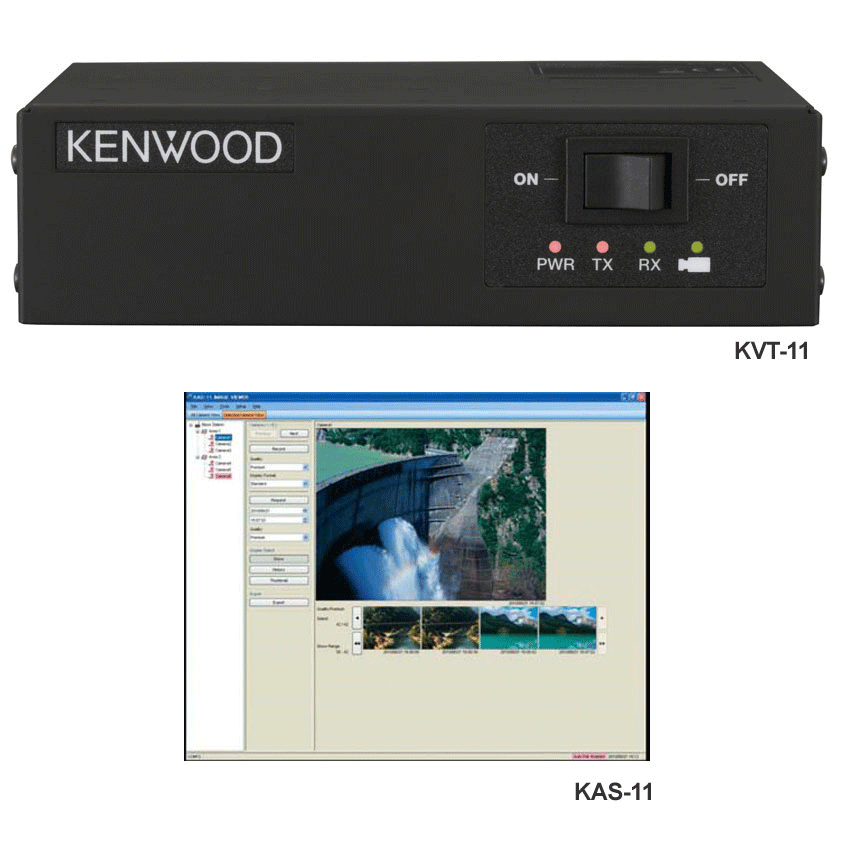

KENWOOD NEXEDGE WIRELESS IMAGE SYSTEM
Kenwood announces the launch of the first Kenwood andJVC joint development project – the KVT-11 Image Encoder and KAS-11 Image Viewer for the remote acquisition of still images from surveillance cameras using the NEXEDGEDigital two-way radio system and JVC cameras.
The new products are in step with Kenwood’s “green” ecological initiative of environmental responsibility in product design, production and procurement.
Features
KVT-11
- Connects between a CCTV camera and aNEXEDGE radio
- Captures images from NTSC/PAL camera feed in H.264
- 4Mb Flash Rom + 4Mb DDR2 Memory
- H.264 Compression Technology
- Video Input = 1V (p-p) via 75 Ohm BNC
- Up to 640 × 480 pixel resolution
- Requires KAS-11 Image Viewer Software
- MIL-STD 810 C/D/E/F
- No wired infrastructure needed for long range coverage by two way radio solution
- Source pictures of 900kB can be compressed to 18KB, 12KB, 6KB, 3KB or 1.5KB*
- Tamper-proof data format, with bitmap/JPEG conversion option
KAS-11
- PC Application Software
- Runs in Windows XP (SP3), Vista and Windows 7
- Requires Pentium III 1GHz or higher
- Selects camera, requests/polls images
- Displays, saves, logs and exports images
- Fully password-protected
- Requires KVT-11 Image Encoder
*Data size of source and compressed images varies on every picture you take.
Downloads
The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather conditions, electromagnetic interference, and obstructions.
Battery life is based on typical use, for example 5:5:90 (transmit:receive:idle). This is an example only and may vary from product to product.
NX-720 / NX-820
- Partner with Middle Range NEXEDGE Portable NX-220/320.
- 260 channel / 128 Zone.
- Multiple Solutions – in One Terminal: Digital Conventional mode / Digital Trunking mode / Analog Conventional
mode.
Easy Migration Mixed Mode –
Analogue and Digital.
Downloads
The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather conditions, electromagnetic interference, and obstructions.
Battery life is based on typical use, for example 5:5:90 (transmit:receive:idle). This is an example only and may vary from product to product.
Kenwood NX-700/NX-800
Price & Order Codes:
| Description | Product Code | RRP |
|---|---|---|
| NX-700 E VHF 136-174 MHz | NX-700 E | £457.00 |
| NX-800 E UHF 400-470 MHz | NX-800 E | £457.00 |
Features:
- 1- 25W Output Power
- 14-character alphanumeric LCD
Downloads
The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather conditions, electromagnetic interference, and obstructions.
Battery life is based on typical use, for example 5:5:90 (transmit:receive:idle). This is an example only and may vary from product to product.

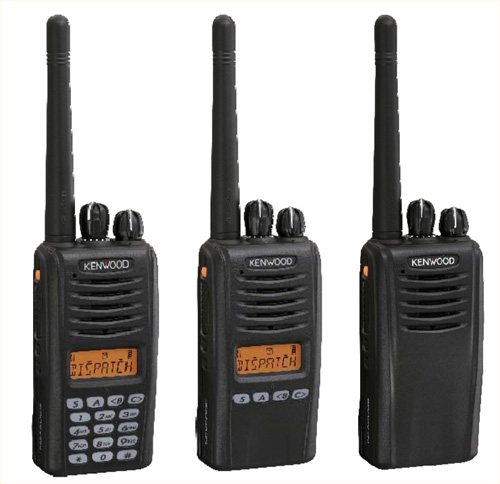

Kenwood NX-220 / NX-320 NEXEDGE VHF/UHF Digital & FM Portable Transceiver
Kenwood is proud to introduce the new NX-x20 Series compact portable radio platform with NEXEDGE. With a smaller, lighter design and flexible features such as Mixed Mode provides a straightforward migration path as current analog radios are replaced with NXDN digital.
The NX-220/320 are the perfect next generation solution for your installed base of enterprise and industrial customers. They’re also easy on the budget, with a dealer and user price lower than previous model series.
The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather conditions, electromagnetic interference, and obstructions.
Battery life is based on typical use, for example 5:5:90 (transmit:receive:idle). This is an example only and may vary from product to product.
Kenwood NX-200/NX-300 Digital & FM Transceiver
Price & Order Codes:
| Option | Description | Product Code | RRP |
|---|---|---|---|
| 1 | NX-200 E (Full Keypad) VHF 136-174 MHz | NX-200 E | £478.00 |
| 2 | NX-200 E3 (6 Control Keys) VHF 136-174 MHz | NX-200 E3 | £452.00 |
| 3 | NX-300 E (Full Keypad) UHF 400-470 MHz |
The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather conditions, electromagnetic interference, and obstructions.
Battery life is based on typical use, for example 5:5:90 (transmit:receive:idle). This is an example only and may vary from product to product.
